Standard Pressure vessels

600psi

Models F80-600S

Side Entry Design
  • Available in 600 psi pressure rating
  • Accommodates standard make 8" Membrane Element

  • Key Features

    • Operating Temp Range: -10°C ---49°C
    • Test pressure
      • Standard: 1.5x Design Pressure
      • ASME: 1.1x Design Pressure
    • Internal permeate port not to exceed 125PSI(0.88MPa)
    • Operating pH Range: 3 – 11
    • Cleaning pH Range: 2 – 12 (less than 30 minutes)
    • Please operate in accordance with User Guide

    All information is subject to change without prior notice. Please contact usfor the latest product information and specifications.

    Download Products Information
    Please click serial number to view detail information
    • 1

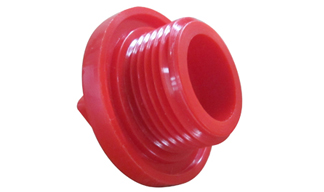

      Part NamePlug
      Part NumberF80H-14-01

    • 2

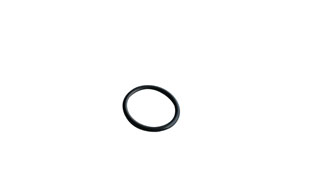

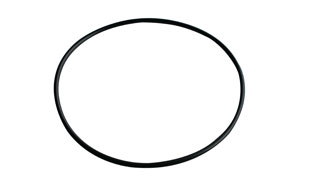

      Part NameO-Ring
      Part NumberF80H-52-01

    • 3

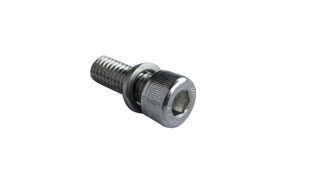

      Part NameLocking Segment Screw
      Part NumberF80H-81-01

    • 4

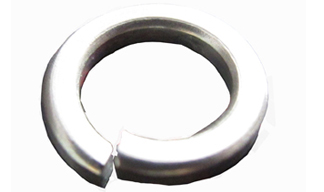

      Part NameSpring Pad
      Part NumberF80H-02-01

    • 5

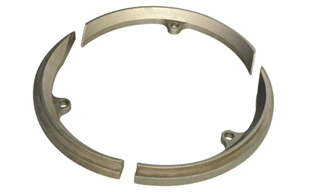

      Part NameLocking Kit Segment
      Part NumberF80H-03-01

    • 6

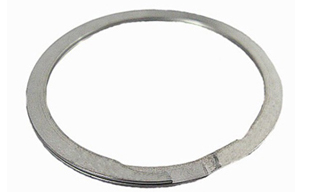

      Part NameRetaining Ring
      Part NumberF80H-91-01

    • 7

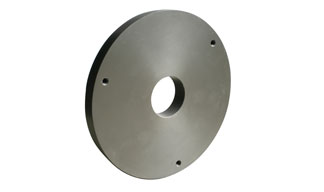

      Part NameBearing Plate
      Part NumberF80H-09-01

    • 8

      Part NameSealing Plate
      Part NumberF80H-10-01

    • 9

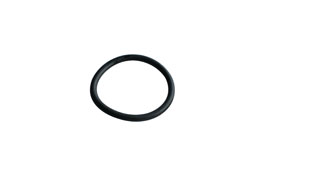

      Part NameO-Ring
      Part NumberF80H-51-01

    • 10

      Part NameO-Ring
      Part NumberF80H-52-01

    • 11

      Part NameThrust Ring
      Part NumberF80H-08-02

    • 12

      Part NameAdapter
      Part NumberF80H-11-01

    • 13

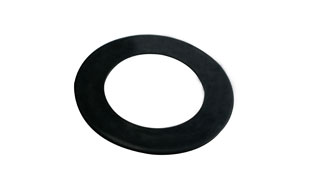

      Part NameAdapter Pad
      Part NumberF80H-15-01

    • 14

      Part NameO-Ring
      Part NumberF80H-53-01
